Multimode Fiber Isolator
Multimode Fiber Isolator
Model:

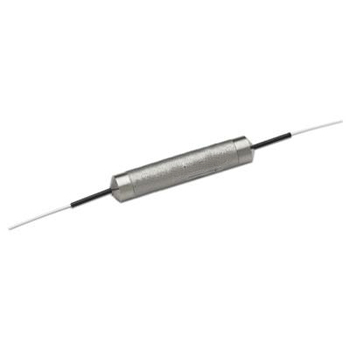

Description: TING ESUN's polarization insensitive optical isolator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, high return loss, low PDL, excellent temperature stability and optical path epoxy free. It can be used for Fiber optic Amplifiers, CATV Fiber optic Links, Fiber optic Systems Testing, Fiber optic LAN Systems and Telecommunications application. All TING ESUN products are Telcordia qualification tested.

FEATURES

  • High Isolation
  • Low Insertion Loss/High Isolation
  • High Return Loss
  • Low Polarization Sensitivity
  • Optical Path Epoxy Free



APPLICATIONS

  • Fiber optic Amplifiers
  • CATV Fiber optic Links
  • Fiber optic Systems Testing
  • Fiber optic LAN Systems
  • Telecommunications



SPECIFICATIONS

PARAMETERS

UNIT

VALUE

Single Stage

Dual Stage

Operating Wavelength

nm

1310,1550

Bandwidth

dB

±15

±30

Peak Isolation

dB

40

48

Isolation(@23°C)

dB

≥28

≥36

Insertion Loss(@-5~+70°C)

dB

≤0.8(Typ.0.6)

≤0.9(Typ.0.65)

Return Loss(Input/Output)

dB

≥40/40

Polarization Dependent Loss, PDL(@23°C)

dB

≤0.1

Polarization Mode Dispersion(PMD)

ps

≤0.2

Maximum Optical Power

mw

500

Operating Temperature

-5~+70

Storage Temperature

-40~+80

Fiber Mode

--

Multimode 50/125 or 62.5/125

Dimension

mm

5.5(Ф)X35(L)

Note: All the data above does not include connectors.





ORDER INFORMATION

ORDER CODE example: MIsolator-13-9-1-10-1-1

Multimode Fiber Isolator with wavelength 1310nm, fiber type 900μm loose tube, fiber mode Multimode 62.5/125, fiber length1.0m, input and output connector FC/UPC.




MIsolator

X

X

X

X

X

X

Code

Wavelength

Fiber Type

Fiber Mode

Fiber Length

Input Connector

Output Connector



13=1310nm

15=1550nm

B=250μm bare fiber

9=900μm loose tube

1=Multimode 62.5/125

2=Multimode 50/125

10=1.0m

15=1.5m

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized
