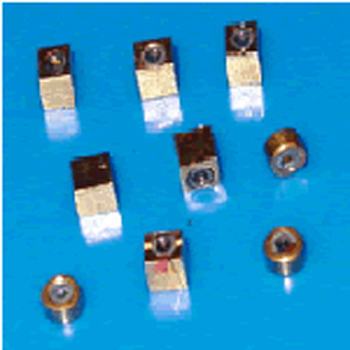

Free Space Isolator
Free Space Isolator
Model:
Description: TING ESUN's free space isolator provides High Isolation,
optical path epoxy free and compact size. It can be used in Optical Transmitter and Laser Doide Packaging application. All TING ESUN products are Telcordia qualification tested.

FEATURES

  • High Isolation
  • Polarization Dependent
  • Optical Path Epoxy Free
  • Compact Size
  • Versatile Package


APPLICATIONS

  • Optical Transmitter
  • Laser Doide Packaging


SPECIFICATIONS

PARAMETERS

UNIT

VALUE

Single Stage

Dual Stage

Operating Wavelength

nm

1310,1550 or CWDM Wavelength

Bandwidth

dB

±20

±20

Peak Isolation

dB

40

55

Isolation(@23°C)

dB

≥26

≥50

Insertion Loss(@-5~+70°C)

dB

≤0.25(Typ.0.18)

≤0.35(Typ.0.3)

Clear Aperture

mm

Ф0.8

Ф0.8

Maximum Optical Power

mw

300

Operating Temperature

-5~+70

Storage Temperature

-40~+80

Dimension

mm

2.5x1.4mm( SS 304 Ring)

3.0x1.4mm( SS 304 Ring)

2.5x3.0mm( SS 304 Ring)

3.0x3.0mm( SS or MR Ring)

3.0x2.5mm( SS or MR Ring)

Note: All the data above does not include connectors.





ORDER INFORMATION

ORDER CODE example: FIsolator-S-13-A

Free Space Isolator with Single Stage, wavelength 1310nm, package dimension 2.5x1.4mm( SS 304 Ring).




FIsolator

X

X

X

Code

Type

Wavelength

Package



S=Single Stage



D=Dual Stage

13=1310 nm

15=1550 nm



A=2.5x1.4mm( SS 304 Ring)

B=3.0x1.4mm( SS 304 Ring)

C=2.5x3.0mm( SS 304 Ring)

D=3.0x3.0mm( SS or MR Ring)

E=3.0x2.5mm( SS or MR Ring)
