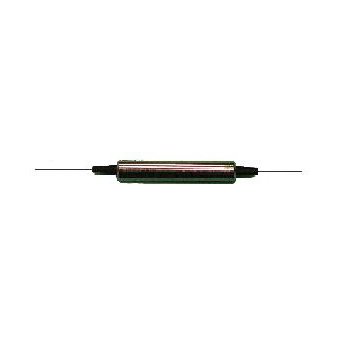

Ultra Wide Band Isolator (C+L, S+C+L Band)
Ultra Wide Band Isolator (C+L, S+C+L Band)
Model:
Description: TING ESUN's polarization insensitive optical isolator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, high return loss, low PDL, excellent temperature stability and optical path epoxy free. It can be used for Fiber optic Amplifiers, CATV Fiber optic Links, Fiber optic Systems Testing, Fiber optic LAN Systems and Telecommunications application. All TING ESUN products are Telcordia qualification tested.

FEATURES

  • High Isolation
  • Low Insertion Loss
  • High Return Loss
  • Low Polarization Sensitivity
  • Optical Path Epoxy Free



 APPLICATIONS

  • Fiber optic Amplifiers
  • CATV Fiber optic Links
  • Fiber optic Systems Testing
  • Fiber optic LAN Systems
  • Telecommunications



SPECIFICATIONS

PARAMETERS

UNIT

VALUE

C+L Band

S+C+L Band

Operating Wavelength

nm

1530~1610

1460~1620

Peak Isolation

dB

58

58

Isolation(@23°C)

dB

≥28

≥26

≥46

≥44

Insertion Loss(@-5~+70°C)

dB

≤0.55(Typ.0.35)

≤0.7(Typ.0.4)

≤0.6(Typ.0.4)

≤0.8(Typ.0.5)

Polarization Dependent Loss, PDL(@23°C)

dB

≤0.1

≤0.1

Polarization Mode Dispersion(PMD)

ps

≤0.2

≤0.25

≤0.05

≤0.07

Return Loss(Input/Output)

dB

≥50/50

≥50/50

Maximum Optical Power

mw

300

Operating Temperature

-5~+70

Storage Temperature

-40~+80

Fiber Type

--

SMF-28e or customer specified

Dimension

mm

5.5(Ф)X35(L)

Note: All the data above does not include connectors.

Specifications may change without any notice.




 ORDER INFORMATION

ORDER CODE example: Isolator-1-9- 10-1-1

Polarization Insensitive Isolator with wavelength C+L, fiber type 900μm loose tube, fiber length1.0m, input and output connector FC/UPC.



Isolator

X

X

X

X

X

Code

Wavelength

Fiber Type

Fiber Length

Input Connector

Output Connector



1=C+L

2=S+C+L

B=250μm bare fiber

9=900μm loose tube

10=1.0m

15=1.5m

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized
