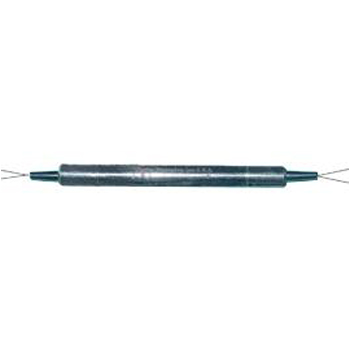

4 Port Polarization Insensitive Optical Circulator
4 Port Polarization Insensitive Optical Circulator
Model:
Description: TING ESUN's polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.All TING ESUN products are Telcordia qualification tested.


FEATURES

  • Low Insertion Loss
  • Wide Band High Isolation
  • Low PDL
  • Compact In-Line Package
  • High Stability and Reliability
  • Epoxy Free Optical Path


APPLICATIONS

  • Optical Amplifier
  • Metro Area Network
  • Wavelength Add / Drop
  • Dispersion Compensation
  • Bi-Direction Communication



SPECIFICATIONS

PARAMETERS

UNIT

VALUE

Configuration

--

4 Port

Operating Wavelength

nm

1310±30 or 1550±30

Peak Isolation

dB

≥45

Isolation(@23°C)

dB

≥40

Insertion Loss(@23°C)

dB

≤1.0(Typ.0.8)

Return Loss

dB

≥50

Polarization Dependent Loss, PDL(@23°C)

dB

≤0.15

Polarization Mode Dispersion(PMD)

ps

≤0.1

Directivity

dB

≥50

Maximum Optical Power

mw

500

Operating Temperature

0~+70

Storage Temperature

-40~+80

Fiber Type

--

SMF-28e or customer specified

Dimension

mm

5.5(Ф)X67(L)

Note: All the data above does not include connectors.

Specifications may change without notice.



ORDER INFORMATION

ORDER CODE example: PIOC-4 -13-9-10-1-1

Polarization insensitive optical circulator with 4 port, wavelength 1310nm, fiber type 900μm loose tube, fiber length1.0m, input and output connector FC/UPC.




PIOC

X

X

X

X

X

X

Code

Type

Wavelength

Fiber Type

Fiber Length

Input Connector

Output Connector



4=4 Port

13=1310nm

15=1550nm



B=250μm bare fiber

9=900μm loose tube

10=1.0m

15=1.5m

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized
